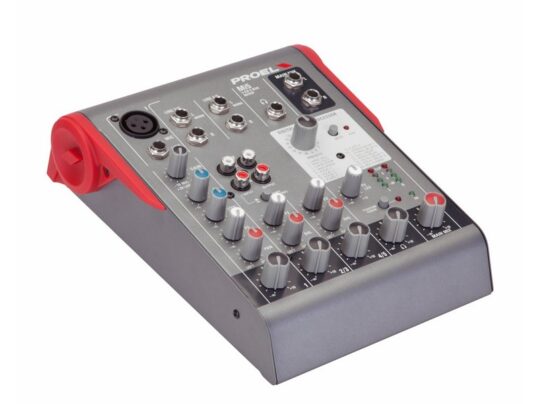

Proel MI5

CARATTERISTICHE
•Tipo sistema: Ultra-compact 6-channel 2-bus mixer
•Connettori di ingresso:
•Mic Input: Balanced XLR-F
•Line Input: Balanced JACK

Sensibilità ingressi:
•MONO INPUT CHANNEL – Mic Input: from -10 to -50 dB
•MONO INPUT CHANNEL – Line Input: from +20 to -20 dB
•STEREO INPUT CHANNEL – Line Input: -10 dB

Impedenza di ingresso:
•MONO INPUT CHANNEL – Mic Input: 2 Kohm
•MONO INPUT CHANNEL – Line Input:10 Kohm
•STEREO INPUT CHANNEL – Line Input: 10 Kohm
•Livelli uscite: Maximum level all outputs: +22 dBu
•Impedenza uscita cuffia: 32 ohm
•Equalizzazione canale ingresso mono: HIGH (shelving): ±15 dB @ 12KHz, LOW (shelving): ±15 dB @ 80Hz
•Effetti: 16 presets; HALL, ROOM, VOCAL and PLATE reverbs; STEREO and MONO DELAY; REV + DELAY, REV + CHORUS
•Intermodulazione (meas. at 1 KHz): > 82 dBu
•Rumore: HUM & Noise unweighted: < -93 dBu
•THD + Noise at +4dB, 1kHz: < 0,008 %
•Alimentazione: 18 VAC 500 mA (use only supplied AC/AC ADAPTER)
•Assorbimento di potenza: 17 W
•Peso:1 kg
•Dimensioni (L x A x P): 172×225×70 mm
